← Back to Products EN 795 / EN 362

Anchors

Certified anchor points for fall protection systems. Anchor plates, swivel rings, beam anchors, and mobile anchors — EN 795 certified for temporary and permanent anchorage applications.

EN 795 Class B EN 795 Class E CE · Category III MBS 15–30 kN
HZA-A1

HZA-A1

Anchor Plate

View More →
HZA-A2

HZA-A2

Swivel Ring Anchor

View More →
HZA-A3

HZA-A3

Load Distribution Plate

View More →
HZA-B1

HZA-B1

Beam Anchor

View More →
HZA-D1

HZA-D1

Mobile Anchor Device

View More →

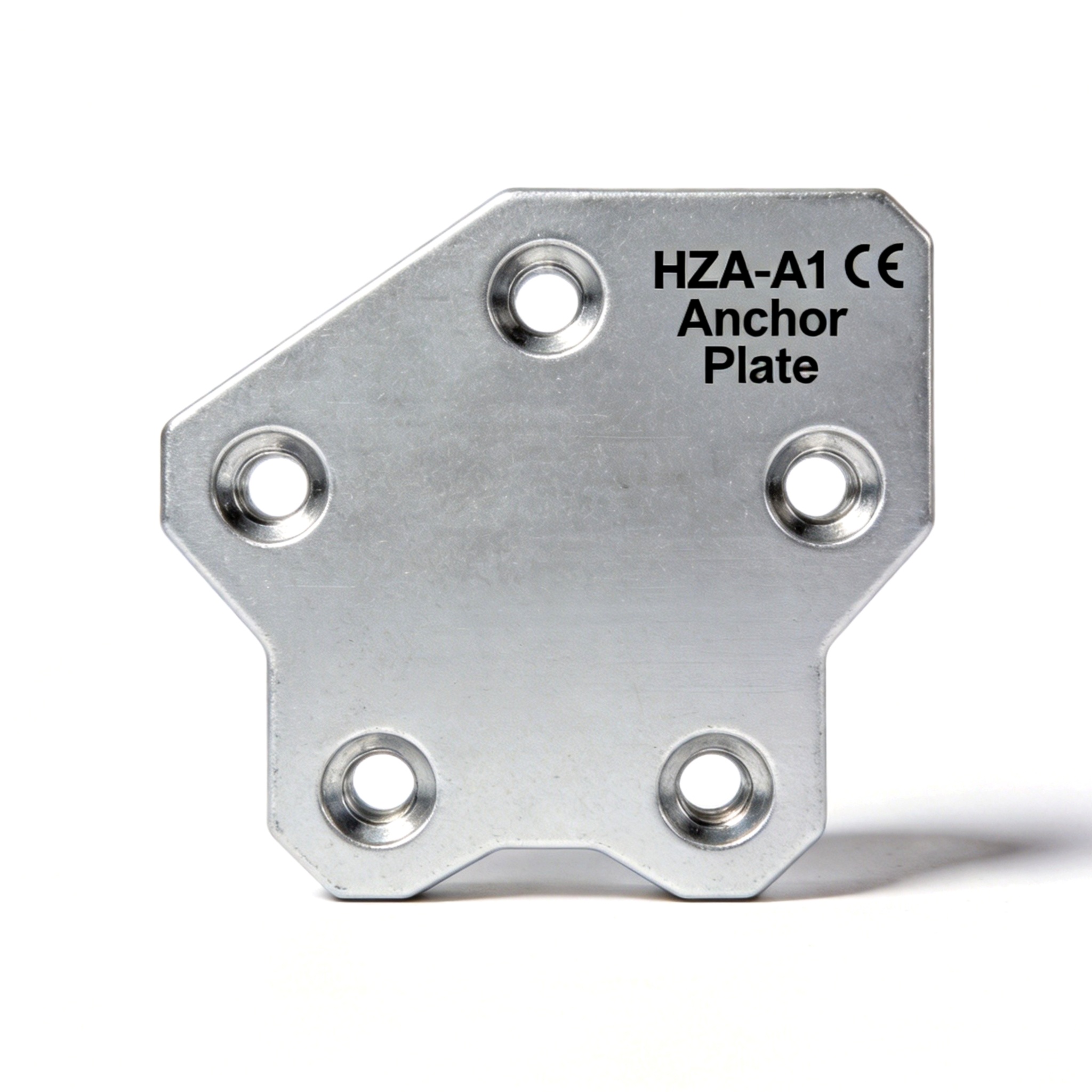

HZA-A1

Anchor Plate
EN 795 Class B
HZA-A1

Key Features

  • Rigging plate with multiple connection holes
  • Distributes load across multiple anchor points
  • Aluminum alloy construction — lightweight
  • 5 connection holes for multiple connectors
  • Anodized finish for corrosion resistance
  • CE marked and individually tested

Specifications

StandardEN 795:2012 Class B
MBS25 kN
MaterialAluminum alloy 7075-T6
FinishHard anodized (silver)
Connection Points5 holes
Weightapprox. 0.095 kg
Dimensions100 × 85 × 8 mm
CertificationCE · EU PPE Reg. 2016/425 Cat. III

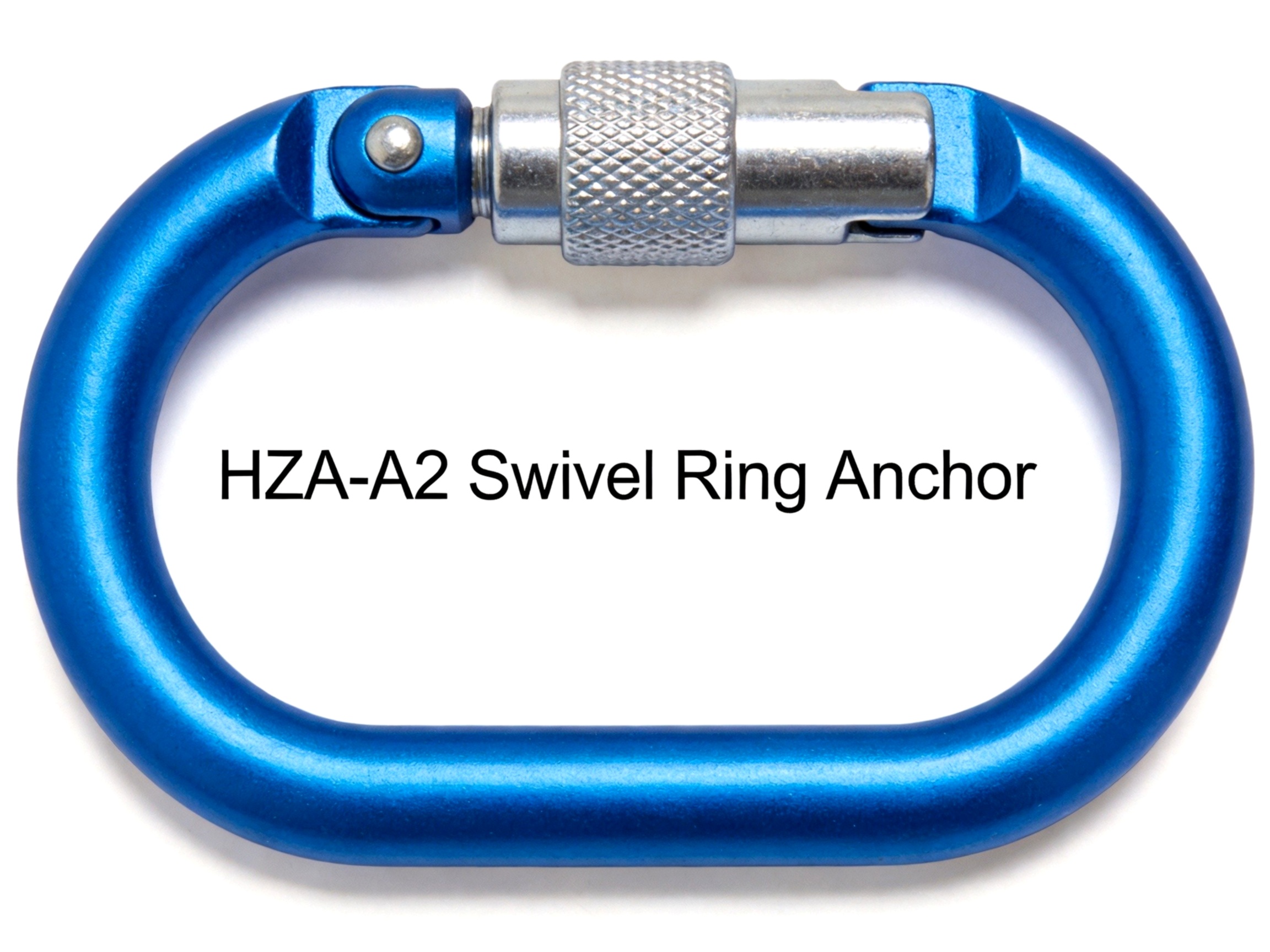

HZA-A2

Swivel Ring Anchor
EN 795 Class B
HZA-A2

Key Features

  • 360° rotation prevents rope/chain twisting
  • Blue anodized aluminum ring body
  • Internal swivel mechanism with sealed bearings
  • Single attachment point anchor
  • Ideal for connecting to overhead anchor points
  • Maintains alignment under load

Specifications

StandardEN 795:2012 Class B
MBS22 kN
MaterialAluminum alloy body, stainless steel swivel
FinishHard anodized (blue)
Ring DiameterØ 50 mm
Weightapprox. 0.120 kg
CertificationCE · EU PPE Reg. 2016/425 Cat. III

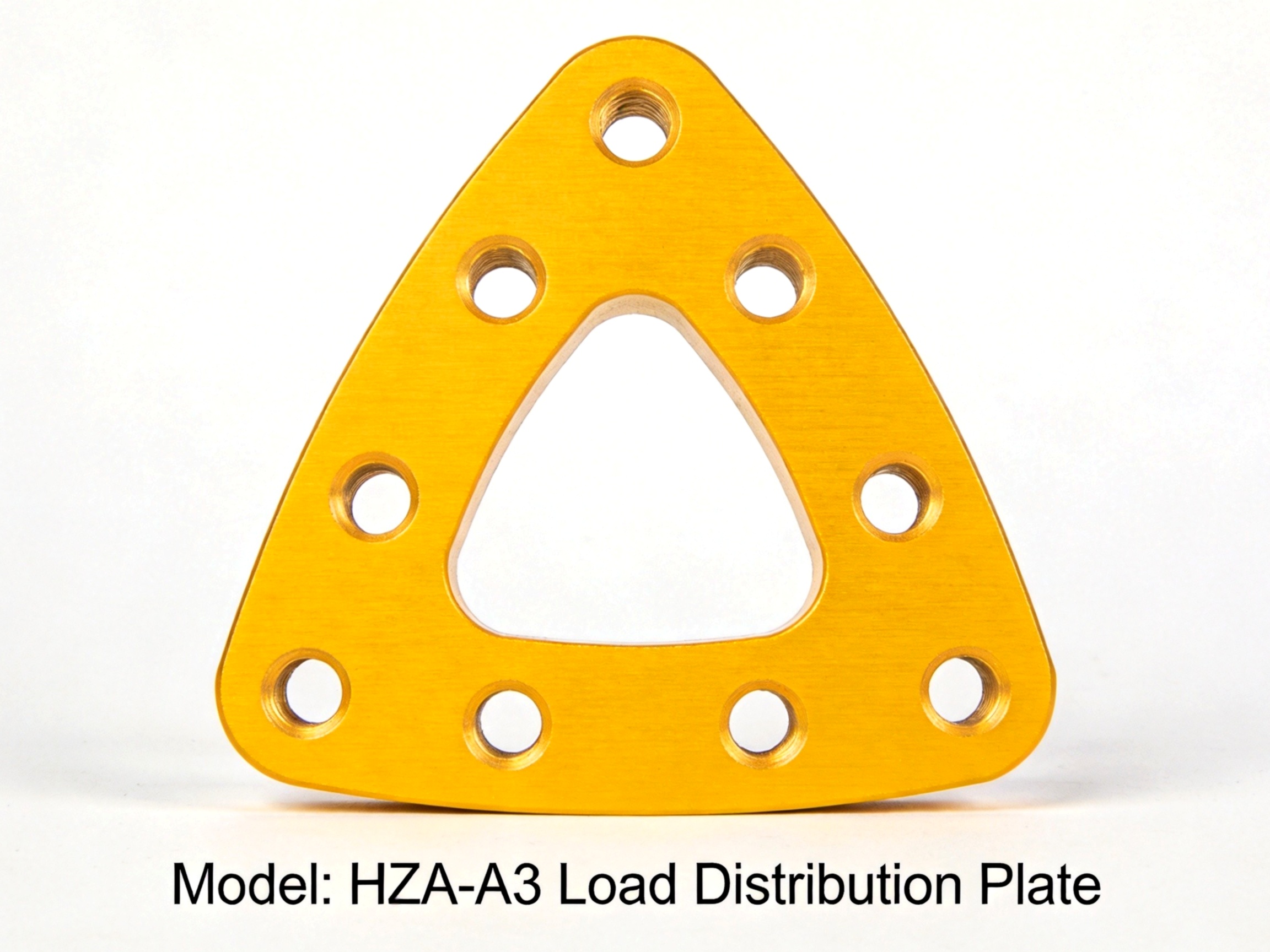

HZA-A3

Load Distribution Plate
EN 795 Class B
HZA-A3

Key Features

  • Triangular plate spreads load to anchor bolts
  • 6 connection points for system rigging
  • Yellow anodized for high visibility
  • Used with anchor bolts in concrete or steel
  • Distributes point loads across anchor system
  • Professional engineering solution

Specifications

StandardEN 795:2012 Class B
MBS30 kN
MaterialAluminum alloy 7075-T6
FinishHard anodized (yellow)
Connection Points6 holes
Weightapprox. 0.180 kg
Dimensions200 × 180 × 10 mm
CertificationCE · EU PPE Reg. 2016/425 Cat. III

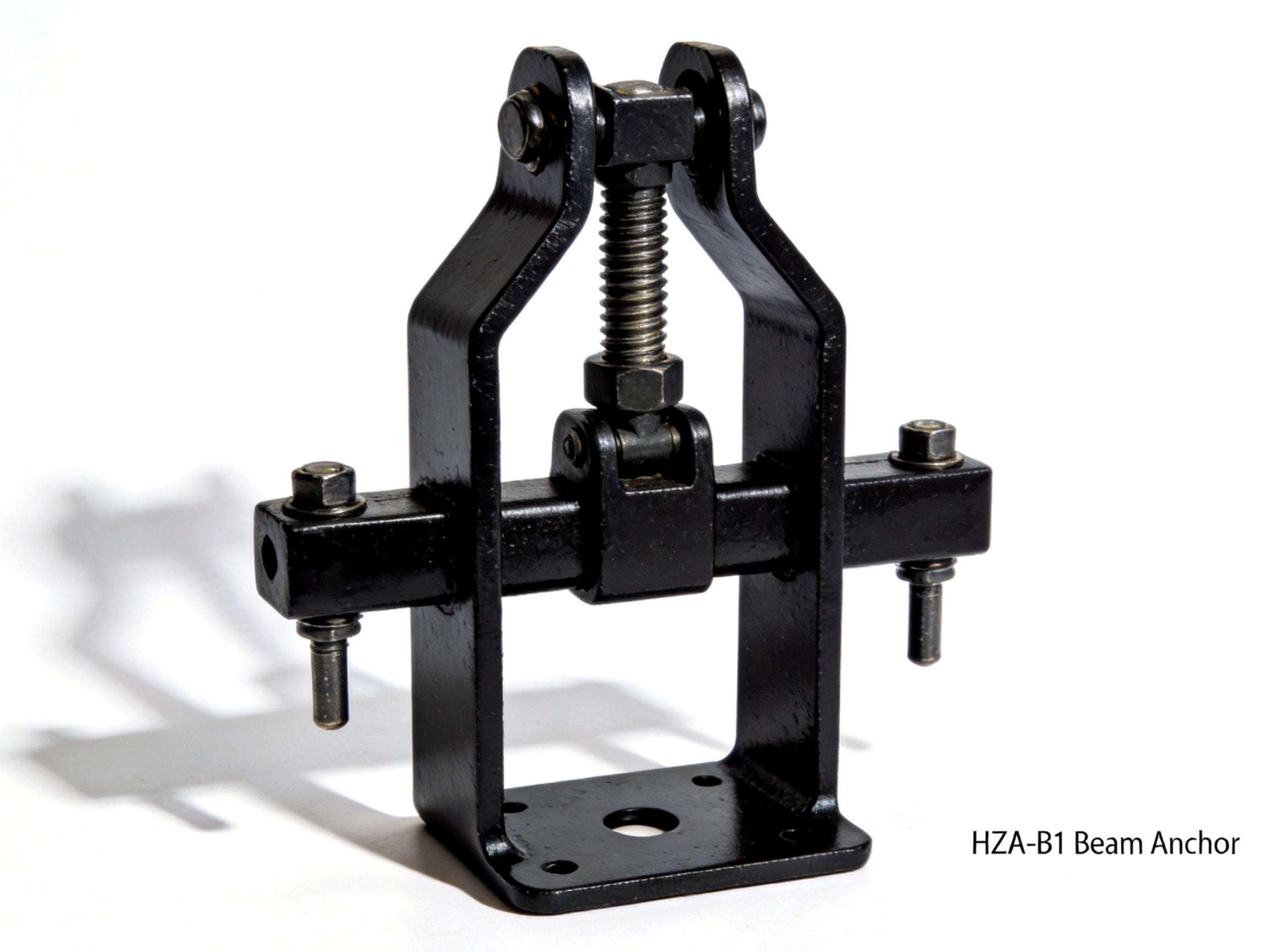

HZA-B1

Beam Anchor
EN 795 Class E
HZA-B1

Key Features

  • Clamps to steel I-beams without drilling
  • Adjustable screw mechanism for beam widths
  • Black painted steel construction
  • Two attachment points: top eye and bottom hook
  • Temporary or semi-permanent installation
  • EN 795 Class E certified anchor

Specifications

StandardEN 795:2012 Class E
MBS15 kN
MaterialHigh-tensile steel, forged
FinishPowder coated (black)
Beam Width75 – 300 mm (adjustable)
Weightapprox. 1.2 kg
CertificationCE · EU PPE Reg. 2016/425 Cat. III

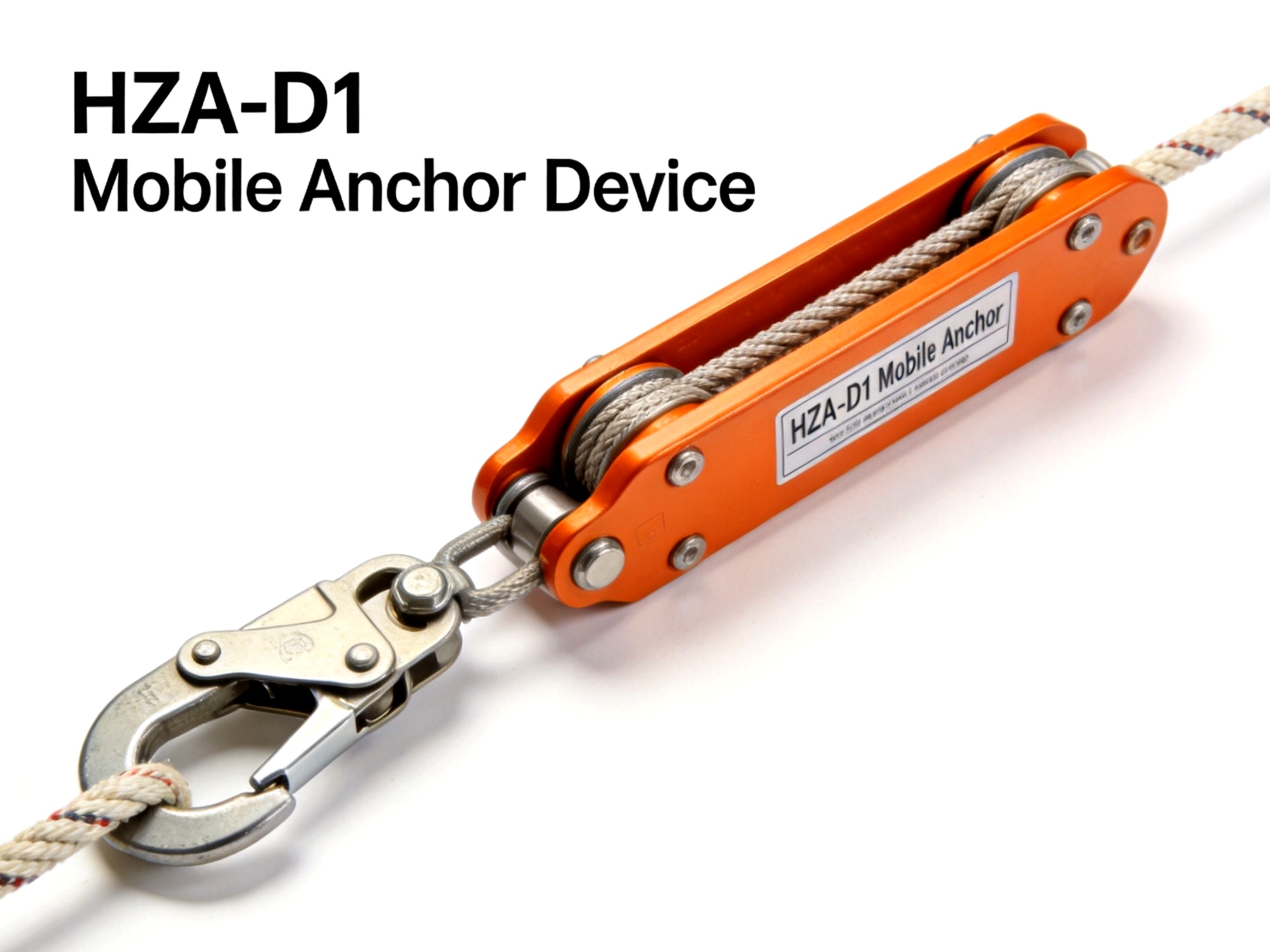

HZA-D1

Mobile Anchor Device
EN 795 Class B
HZA-D1

Key Features

  • Slides along rope to follow worker movement
  • Integrated rope grab mechanism
  • Orange anodized aluminum body for visibility
  • Used as adjustable anchor point on lifeline
  • EN 795 Class B certified
  • Compact and lightweight design

Specifications

StandardEN 795:2012 Class B
MBS15 kN
MaterialAluminum alloy 7075-T6
FinishHard anodized (orange)
Rope DiameterØ 10 – 12 mm kernmantle rope
Weightapprox. 0.150 kg
Dimensions80 × 55 × 35 mm
CertificationCE · EU PPE Reg. 2016/425 Cat. III

Need Technical Specifications or a Quote?

Our team responds within 24 hours with availability, pricing, and lead times. Full certificates available before order.
